Flameproof DIS

Door interlocking System with Several Door Options With Embedded Software for Door Logic

A Door Interlock system is used to prevent the simultaneous opening of multiple doors. The system aids in minimizing the microbial, and particulate contamination and helps maintain pressure difference between two rooms. It is also available in flameproof option also known as Explosion Proof or X Proof Door Interlock.

CE Certified

BIS Certified

Make in India

Description
  • Easy and quick installation.
  • Suitable for current GMP norms for clean rooms.
  • Specially designed for hazardous areas like Bulk Drugs, API, etc.
  • Keyboard available in Flameproof Enclosure, in contactless I/R reader, or with an access card reader as per application demands.
  • Advanced design as per clean room concept.
  • Maintenance-free control panel with reliable and easily available components.
  • Only manually resetable emergency mode to defeat the interlocking system as per safety norms.
  • Powerful electromagnet in Flameproof Enclosure.
  • Feature of Expiry Date to restrict contract basis employees and vendors etc.
Technical Information

Flameproof DIS Enclosure

Particular

Specification

Type of Protection

Flameproof Ex'd

Areas Classification

Zone 1 & 2

Dimension

390(H)x330(W)x130(D)

Gas Groups

IIA & IIB, T6

Material of Construction

Aluminum LM6

IP Protection

IP 66 Confirming to IS:12063

Structure Gasket

“O” ring Type Neoprene

Tolerance

10 to 15 mm

Certification

CIMFR (Dhanbad) , ATEX, NSIC , ISO

DIS Emergency Exit

Particular

Specification

Type

Momentary

Contact output

NO, NC, Com Contact

Cable Entry (Glands)

¾” ET : 2 Nos.

Degree of Protection

lP-65

Protection level

Flame, Tamper & Weather proof (Apprv. by CIMFR Dhanbad)

Suitable Zones &
Gas Groups

Zone 1 & 2 area & Gas Group: I, IIA, IIB Neoprene

MOC

Aluminum Alloy LM-6

Dimension (Flameproof Enclosure)

100*100*80mm

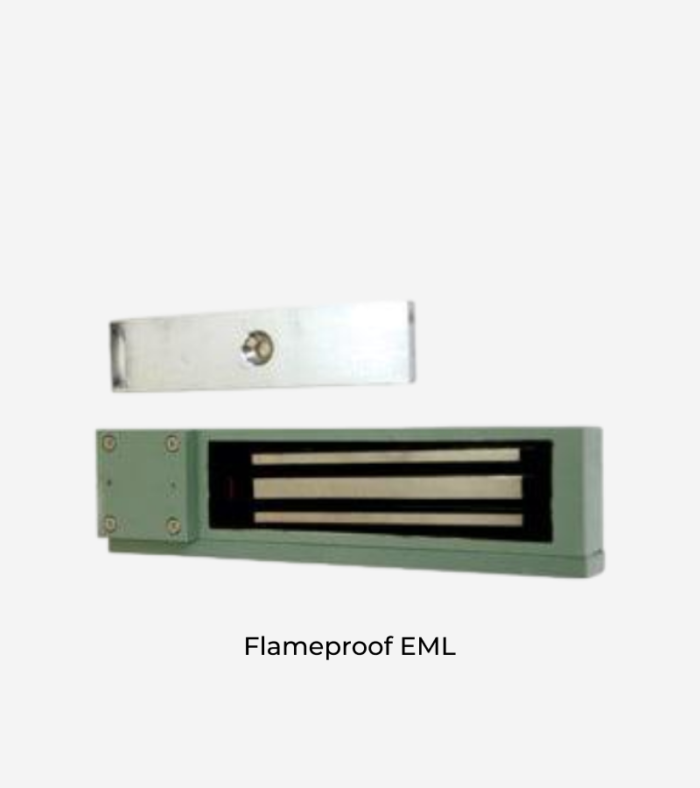

Single Leaf Flameproof EML Monitored Lock

Particular

Specification

Operating Voltage

12 VDC

Current Draw

500 mA

Holding Force

Upto 600 LBS

Degree of protection

lP-65

Protection level

Flame, Tamper & Weather proof (Apprv. by CIMFR Dhanbad)

Suitable Zones &
Gas Groups

Zone 1 & 2 area & Gas Group: I, IIA, IIB Neoprene

Mounting Type

Surface

MOC

Aluminum Alloy LM-6

Led Indication

Yes

Built-in-feedback

Yes

Weight-Magnet/Armature Plate

Approx. 2Kg

Dimensions

Magnet - 340 X 60 X 35 mm (W*H*D)

Armature - 160 X 38 X 9 mm (W*H*D)

Single Leaf Flameproof EML Monitored Lock

Particular

Specification

Type

Capacitive Touch Proximity Sensing

LED Indication

Door Open - Green Door Lock - Red

Alarm output

1 Buzzer Output for Alarm

Cable Entry (Glands)

¾” ET : 2 Nos.

Degree of Protection

lP-65

Protection level

Flame, Tamper & Weather proof (Apprv. by CIMFR Dhanbad)

Suitable Zones &
Gas Groups

Zone 1 & 2 area & Gas Group: I, IIA, IIB Neoprene

MOC

Aluminum Alloy LM-6

Dimension (Flameproof Enclosure

100*100*80mm
