smartXS NG
The versatile Interface makes the device technically very strong & user-friendly. It gives tremendous freedom to use the infrastructure, either existing or planned. The device has an inbuilt capability for an online upgrade of the firmware. The alarm management software module for security audit or to verify/identify tailgating is made effective by Alert based network protocol implemented in smartXS-NG. smartXS-NG has an inbuilt configurable door interlocking facility so that if one door is open, some or all of the other three will remain closed. The logic can be defined by the user on-site through the controller keypad.
CE Certified
BIS Certified
Make in India
Description
- 32-bit RISC Arm processor.
- Cost-effective solution for critical areas where OUT reader is mandatory as it supports IN / OUT both readers.
- Inbuilt configurable door interlocking facility.
- CCTV / IP camera integration with access events for a security audit.

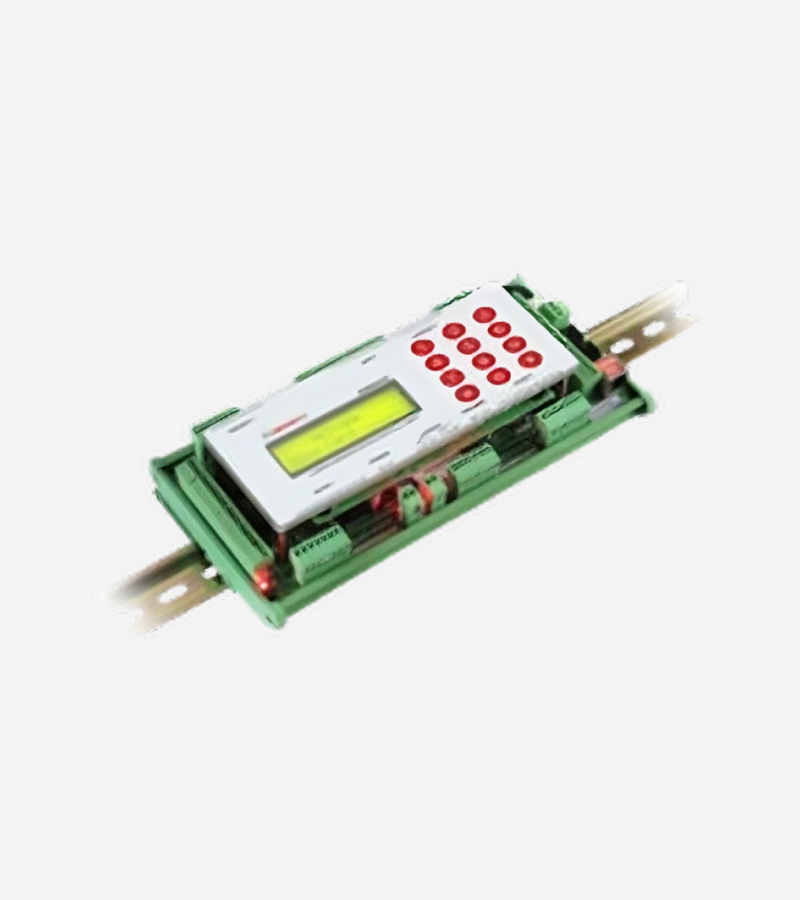

- DIN RAIL mounting option available.
Technical Information
|
Parameter |
SMNG240 |
SMNG480 |
|---|---|---|
|
CPU |
ARM 32 Bit RISC Processor |
ARM 32 Bit RISC Processor |
|
Memory |
Up to 8 MB (Flash) |
Up to 8 MB (Flash) |
|
No of Doors/Readers |
2/4 |
4/8 |
|
Events/Transactions |
60,000 |
60,000 |
|
No. of Users |
30,000 |
30,000 |
|
Reader Interface |
Wiegand (Up to 34 bit) |
Wiegand (Up to 34 bit) |
|
Input |
6 inputs (2-D, 2-E,1-F & 1-Intr.) |
12 inputs (4-D, 4-E,1-F & 1-Intr.) |
|
Output |
4 outputs (2-DOTL, 2-Lock) |
8 outputs (4-DOTL, 4-Lock) |
|
Communications Port |
TCP/IP, RS485 |
TCP/IP, RS485 |
|
LCD |
16X2 LCD Display |
16X2 LCD Display |
|
Keypad |
4X3 Key with soft keypad |
4X3 Key with soft keypad |
|
Power Supply |
12 V DC / 5A |
12 V DC / 5A |
|
Enclosure |
Industry Standard Metal Enclosure |
Industry Standard Metal Enclosure |
|
Mounting |
Din Rail or Wall Mounting (With Metal Enclosure) |
Din Rail or Wall Mounting (With Metal Enclosure) |
|
Dimension(LxHxW) |
NA |
NA |
|
Tailgating Device |
NA |
NA |
